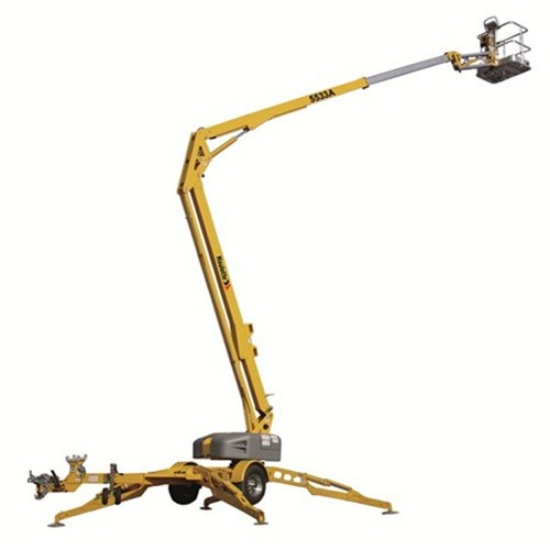

The Haulotte Bil‑Jax 5533A is a towable articulating boom lift designed to deliver exceptional reach, fast setup, and easy transport for contractors, maintenance crews, and property managers. Offering a 55 ft 3 in platform height, 61 ft 3 in working height, and 33 ft 5 in horizontal outreach, it provides impressive access for elevated tasks while remaining lightweight enough to tow with a standard pickup. Its hydraulic outriggers automatically level the machine in under 30 seconds, and the articulating boom with a 4 ft 3 in jib and 150° vertical motion allows precise positioning around obstacles. Powered by a 24V DC battery system the 5533A offers quiet, reliable operation with intuitive platform and ground controls, making it a versatile and user‑friendly solution for a wide range of aerial work applications
Performance & Reach
Dimensions, Power & Transport
Max Working Height: 61 ft 3 in
Stowed Height: 6 ft 9 in
Platform Height: 55 ft 3 in
Stowed Length: 23 ft 8 in
Horizontal Outreach: 33 ft 5 in
Stowed Width: 5 ft 7 in
Up‑and‑Over Height: 23 ft 1 in
Operating Weight: 4,800 lbs
Platform Capacity: 450 lbs
Towable: Standard half‑ton pickup
Platform Size: 2.9 ft × 4 ft (approx.)
Max Towing Speed: 65 mph
Turntable Rotation: 350° non‑continuous
Power: 24V DC (4 × 6V batteries)
Jib Range: 150° vertical, 4.3‑ft jib
Charger: Electric onboard charger
Leveling Capability: 12.5°
Outriggers: Hydraulic auto‑level (<30 sec)
