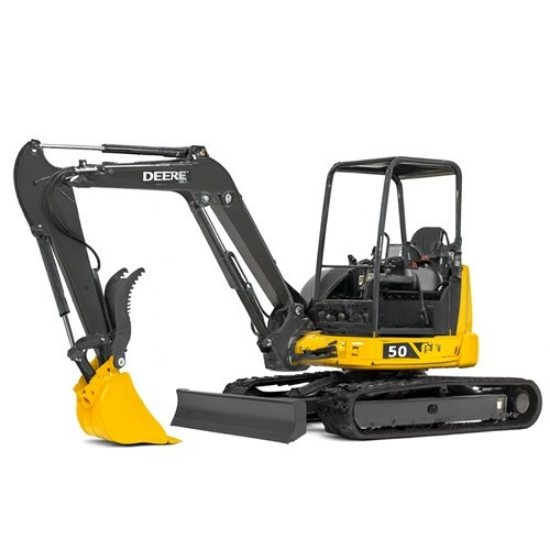

The John Deere 50P mini excavator is a compact, heavy‑duty machine built for tight‑space jobs where power and precision matter; it pairs nimble, zero‑tail‑swing maneuverability with robust hydraulic performance, a comfortable, ergonomic operator station, and easy service access for fast maintenance. Its chassis and undercarriage are optimized for stability and transportability, with an operating weight in the mid‑4‑ton range and a standard backfill blade. The boom/arm geometry delivers class‑leading reach and a digging depth suitable for utility and landscaping work while maintaining strong bucket and arm breakout forces. Designed to handle general digging, trenching, grading, and attachment work, the 50P accepts a wide range of buckets and delivers dependable digging and lifting capability for digging, trenching, utility work, and landscaping projects, and emphasizes fuel efficiency and durability to keep up-time high on busy job sites.
Model
John Deere 50P
Machine type
Zero‑tail‑swing compact excavator
Net engine power
35.9 hp (26.8 kW)
Operating weight (typical)
~4,920 kg (10,847 lb)
Maximum digging depth
~3.53 m (11 ft 7 in)
Maximum digging reach (ground level)
~5.96 m (19 ft 7 in)
Reach at max height
31.5 in
Length (with bucket)
136 in
Width (with bucket)
68 in
Track width
12.6 in
Overall width (typical)
~2.00 m (78.7 in)
Transport length (mono boom)
~5.47 m (17.95 ft)
Transport height
~2.53 m (8.31 ft)
Tail swing
Zero‑tail‑swing; compact rear radius
Dozer / backfill blade
Standard
Main hydraulic flow (typical)
~120 L/min (≈31.7 GPM)
Auxiliary circuit
Boom‑mounted; selectable one‑ or two‑way return flow
Attachment readiness
Quick‑coupler ready; optional hydraulic coupler and high‑flow packages
Breakout forces
Sized for 5‑ton class; engineered for trenching and loading
Travel speed
Dual‑speed travel; automatic shift; top speed varies by configuration
Ground pressure
5.9 psi
Fuel capacity
28.3 gal (US)
Controls (selectable)
ISO (Cat) or H pattern (Case)
Track options
Rubber tracks standard; steel tracks optional
Track gauge
Selectable/adjustable (affects final width and ground pressure)
Cab
ROPS/FOPS‑certified pressurized cab option with HVAC (optional)
Operator controls
Pilot‑operated joysticks; multifunction display for diagnostics
Seating
Adjustable suspension seat
Service access
Hinged side door for radiator/oil‑cooler; grouped service points; easy‑lift engine covers
Maintenance features
Extended‑interval components available (e.g., oil‑impregnated bushings)
Standard equipment
Mechanical quick‑coupler or quick‑coupler readiness; boom‑mounted auxiliary lines; backfill blade
Factory / dealer options
Hydraulic quick‑coupler; high‑flow auxiliary package; thumbs; hammers; augers; plate compactors; multiple bucket styles
Safety & durability
Reinforced boom/arm structures; guarded hydraulic lines; ROPS/FOPS cab certification
