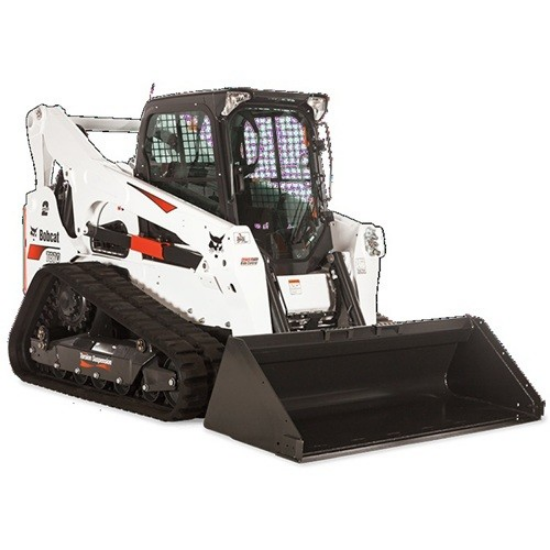

Model Bobcat T650
Machine type Compact track loader (vertical‑lift design)
Engine model Kubota V3307‑DI‑TE3 (diesel)
Gross power 74.3 hp
Rated speed 2400 rpm
Operating weight ~9,440 lb
Rated operating capacity (35%) 2,570 lb
Rated operating capacity (50%) 3,670 lb
Tipping load 7,343 lb
Lift breakout force ~6,400 lb
Tilt breakout force ~5,885 lb
Travel speed (low range) 6.2–6.6 mph
Travel speed (high‑speed option) 10.7 mph
Ground pressure ~5.7–5.8 psi
Hydraulic pump flow (standard) 23 GPM
High‑flow option 30.5 GPM
Relief pressure ~3,500–3,550 psi
Hydraulic capacity ~11.9 gal
Fuel capacity 27.2–43.9 gal (varies by configuration)
Cooling system capacity ~3 gal
Length (with bucket) 136.8 in
Length (without bucket) 9.04 ft
Width (over tracks) 72.9 in
Height to cab 81.3 in
Bucket hinge‑pin height 124 in
Dump height 96.3 in
Dump reach 34.2 in
Ground clearance 8.1 in
Track width 12.6 in
Track length 108.4 in
Ground contact length 60.3 in
Control options: Selectable Hand controls, ISO(Cat) or H pattern (Case)
Attachment interface Bob‑Tach® quick‑attach system
Attachments supported Buckets, forks, augers, trenchers, mulchers, hammers, compactors, and more
Cab options Open canopy or enclosed HVAC cab
Visibility Cab‑forward design
Engine emissions Tier 4, non‑DPF (no regeneration downtime)
